ZR Series Solar Street Light
ZR Series large-format all-in-one solar street lights with smart control. The A/B/C variants deliver high-power output and long autonomy for 8-14 m arterial, plaza and highway poles.
Variants
3
Mount
All-in-one
Series
ZR
Product details
Closer look.
Click any tile to view it full size.
Overview
Built for the road it lights.
ZR · ZR-A / ZR-B / ZR-C

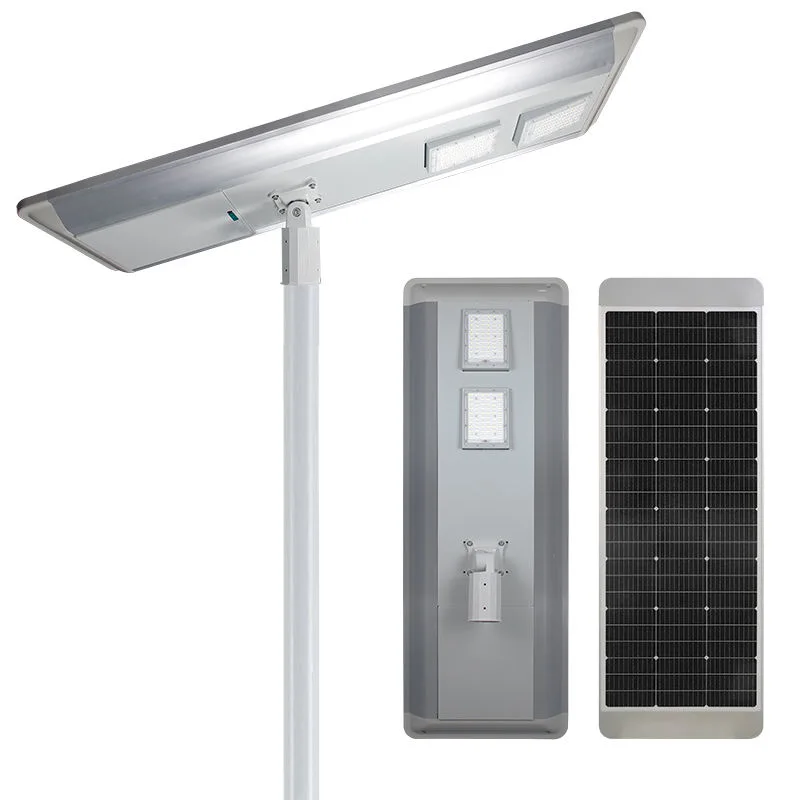

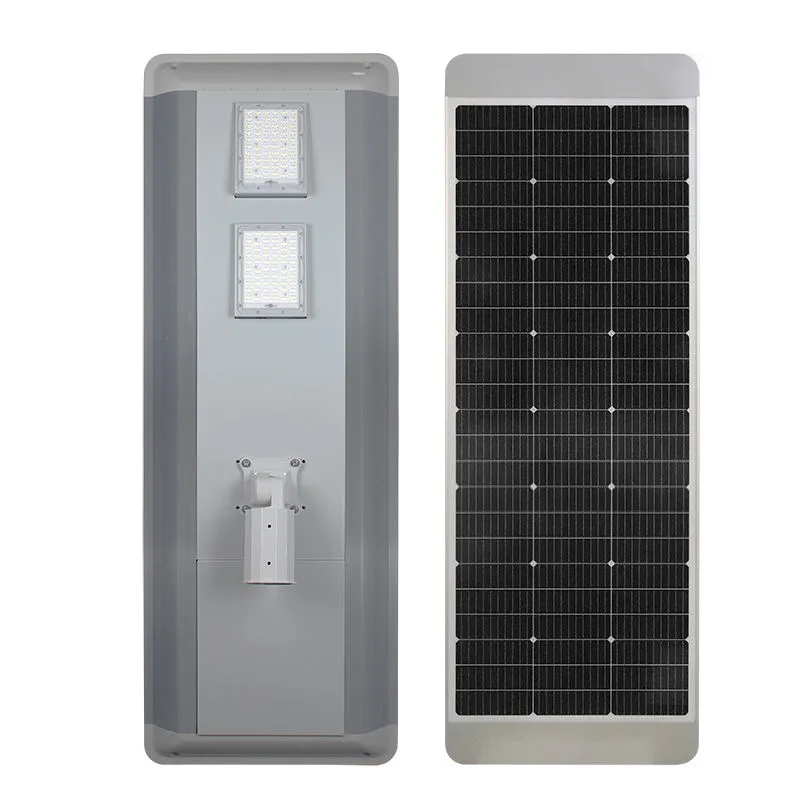

ZR Series solar street lights are the largest all-in-one build in the range, intended for arterial roads, plazas and highway verges. The A/B/C models share one wide 600 mm IP66 housing that holds a very large solar panel, a 25.6 V LiFePO4 battery, an MPPT controller and a high-count SMD 5050 LED array with smart control.
It mounts on 8-14 m poles, the tallest in the family set. ZR-A runs 120 SMD 5050 LEDs on a 150 W panel, ZR-B steps to 180 LEDs and 200 W, and ZR-C reaches 12-14 m with 240 LEDs and a 250 W panel, backed by a battery that climbs from 30 Ah to 60 Ah.
Available variants
3 variants.

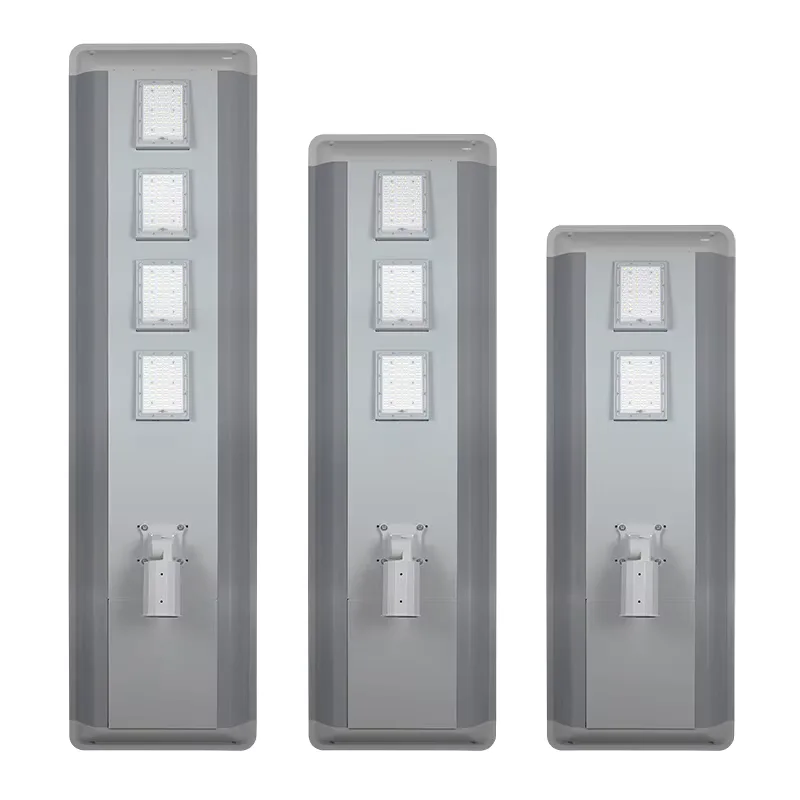

ZR-A / ZR-B / ZR-C · 8-10m / 10-12m / 12-14m
One family, several builds. Compare size, light source, battery, solar panel and installation height across every variant, side by side.
Select a variant
All variants are listed below — selecting one highlights its row and, where per-variant imagery exists, updates the photo above.
| Model | Size | Light source | Battery | Solar panel | Installation height |
|---|---|---|---|---|---|
| ZR-A | L1550*W600*H90MM | SMD 5050/120pcs | 25.6V/30AH | 30V/150W | 8-10m |
| ZR-B | L2100*W600*H90MM | SMD 5050/180pcs | 25.6V/45AH | 30V/200W | 10-12m |
| ZR-C | L2470*W600*H90MM | SMD 5050/240 pcs | 25.6V/60AH | 30V/250W | 12-14m |
Why buyers pick it
Built in, not bolted on.
The features below come from the family's own specification — nothing here is available as a paid extra.
- Large-format bodyThe 600 mm housing carries the biggest panel and LED array in the all-in-one range.
- 25.6 V battery systemA high-voltage pack underpins the heavy output and the largest panel in the family.
- Up to 240 LEDsThe SMD 5050 array steps from 120 to 240 chips as the pole and the route grow.
- Tall mountsThe family is rated for 8-14 m poles, the highest of the families here.
- Smart controlScheduling and dimming are handled from the app or remote, without opening the fixture.
- Sealed IP66 bodyThe die-cast enclosure keeps the battery and controller dry in exposed locations.
Selection guide
Match the model to the road.
Start from your pole height and the road you are lighting, then confirm the details with us.
- Plaza or arterial with 8-10 m poles?
- ZR-A pairs 120 SMD 5050 LEDs with the 150 W panel.
- Highway verge needing maximum output?
- ZR-C carries 240 LEDs and the 250 W panel.
- The tallest poles in the family?
- ZR-C also reaches 12-14 m, the highest mount available here.
- Standard 10-12 m layout?
- ZR-B sits in the middle with 180 LEDs and the 200 W panel.
Where it is used
Fits these sites.
The same fixture family serves different road classes — pick the scene closest to your project.
Main roads, arterials & highways
Typical useArterial avenues, trunk roads and intersections carrying traffic all night.
Industrial sites, yards & terminals
Factory yards, logistics parks and terminals with wide open areas to cover.
Coastal & high-corrosion sites
Salt air and sustained humidity, where an ordinary housing gives up early.
Common questions
Asked & answered.
Answers drawn from the specifications above. Need a parameter that is not listed? Send us a question — we reply within 24 hours.
What mounting heights does the ZR Series Solar Street Light cover?
Across its 3 variants, this family covers mounting heights of 8-10m, 10-12m, 12-14m. Pick the one that matches your pole height and the road width you are lighting — tell us your target height and we will confirm the fit.
Is the ZR Series Solar Street Light integrated or split?
This family uses an all-in-one design — solar panel, battery, controller and LED are integrated in a single fixture. Mount it on the pole and switch it on; no external wiring or battery box.
What battery and light source does the ZR Series Solar Street Light use?
Configurations across the family include batteries (25.6V/30AH / 25.6V/45AH / 25.6V/60AH) and a SMD 5050/120pcs / SMD 5050/180pcs / SMD 5050/240 pcs light source. The per-variant pairing is listed in the table above; sites needing longer autonomy can step up to a larger battery and panel.
Can I order more than one variant in the same project?
Yes. All 3 variants belong to one family and can be mixed freely in a single order — the MOQ applies per model. Share your pole-height breakdown and we will recommend the mix.
Where is the ZR best used?
On wide arterial roads, plazas and highway verges where a large integrated panel is acceptable.
Is a big all-in-one hard to mount?
It still brackets to a pole tenon; tell us the pole specification and we will confirm the bracket and the load.
How does the ZR handle a long cloud spell?
The larger battery helps, but tell us your region and worst overcast run so we can size the panel and battery honestly.
Does the ZR support dimming?
Yes; scheduling and dimming run from the app or remote as part of the smart-control build.
What packing suits a large order?
Fixtures ship boxed for container loading; send the quantity and port and we will advise on the loading plan.
What should I send for a plaza quote?
Pole height, area or road width, quantity and destination, and we will answer within 24 hours.
Do you accept OEM / ODM orders for the ZR?
Yes — the large housing takes your logo and packing, and the control configuration and LED or battery step-up can be matched to your plaza or arterial scheme. Contact sales for MOQ and lead time.
