ac led

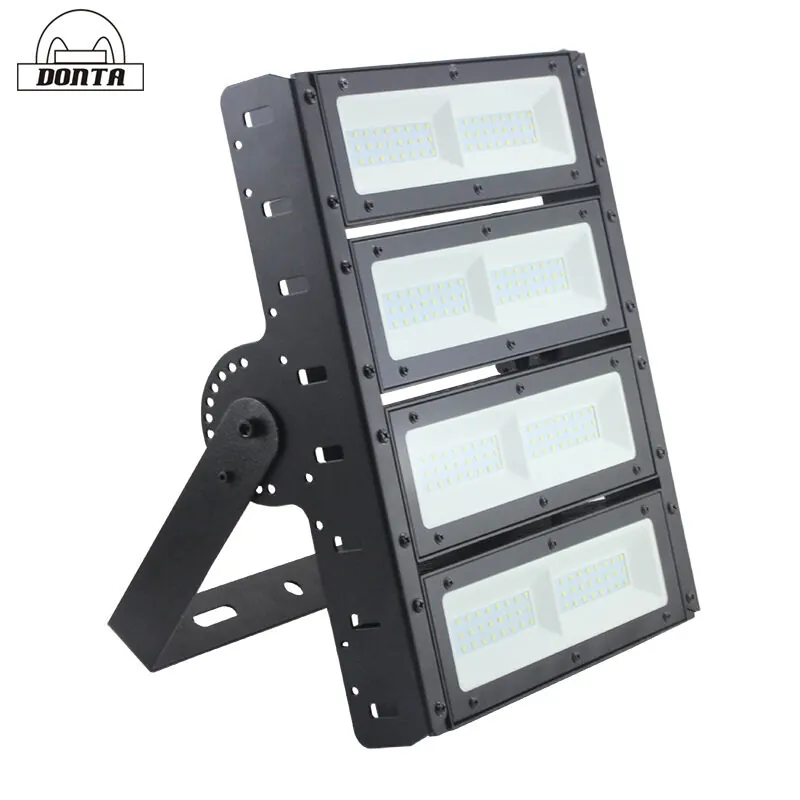

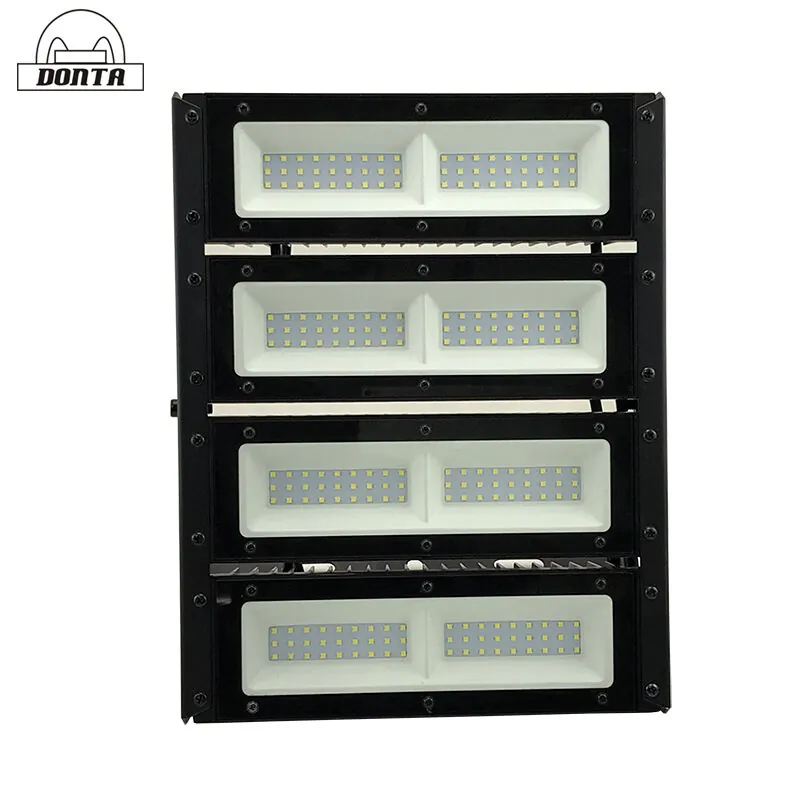

M23 Modular LED Flood Light (50W-1000W, 10 Wattage Options)
Model: M23
High-power modular LED flood light. SMD 3030 LED, 6kV surge protection, IP65, 180° adjustable bracket.
Warranty
3-5 yr
MOQ
10 pcs
Lead time
15-25d
CE
Certified
RoHS
Certified
ISO 9001
Certified
Technical data
Specs, plain.
Every value verified on the production line. Need a parameter not listed? Ask us.
| Specs | 材料: 铝+PC / 电压: AC85-305V / LED芯片: SMD3030 / 发光效率: ≥130lm/W / 浪涌保护: 6000V / CCT: 3000-6500K / IP: IP65 / PF≥0.95 / CRI≥0.7 |
|---|---|
| Wattage Options | 10 档功率 50W-1000W |
| LED Quantity Options | 60/120/180/240/300/360/480/600/960/1200 |
| Size Options | 85*300*130 / 180*300*130 / 270*300*130 / 370*300*130 / 455*300*130 / 270*570*130 / 370*570*130 / 570*570*130 / 740*570*130 / 1140*570*130 |
| Material | Aluminum + PC |
| Warranty | 3 years |
About this product
What it does.
The M23 modular LED flood light is the high-power AC-powered workhorse of our stadium / industrial lighting lineup. SMD 3030 LED modules in a modular configuration deliver 10 档功率 50W-1000W with 130-150 lm/W output.

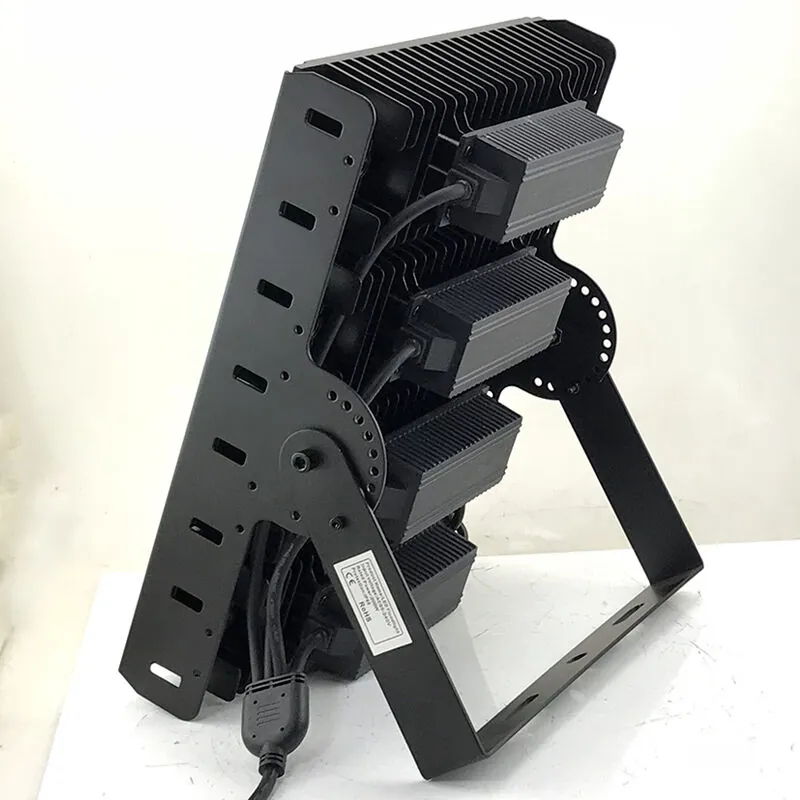

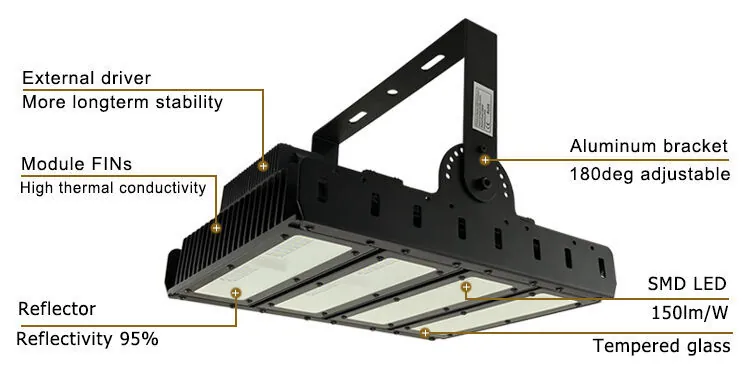

Each module is independently replaceable, slashing service costs. 6kV surge protection, PF≥0.95, IP65 die-cast aluminum housing. CRI≥70 (or ≥80 on request). 180° adjustable mounting bracket.

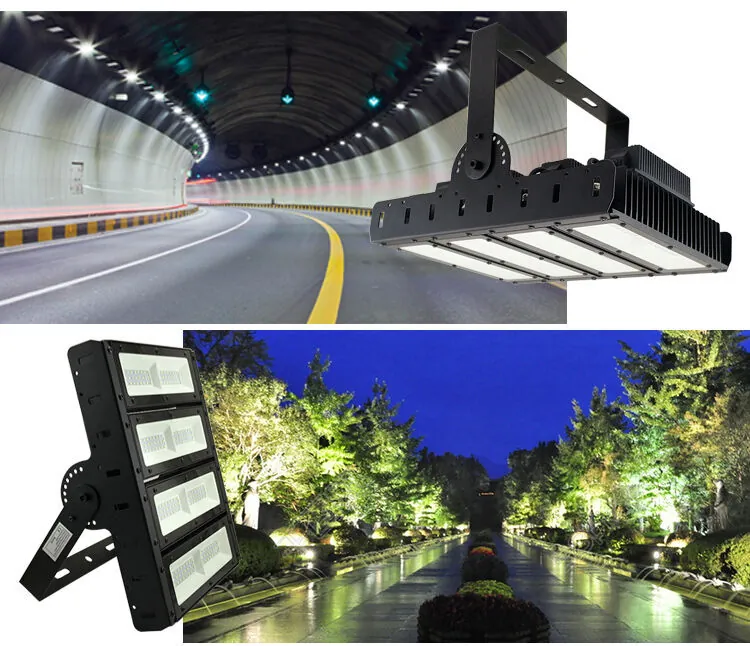

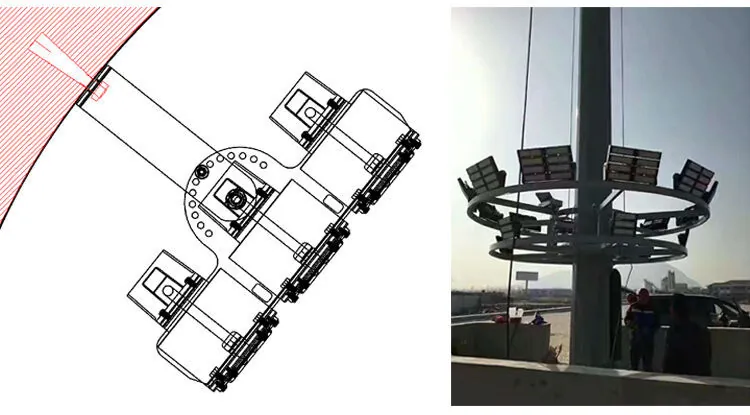

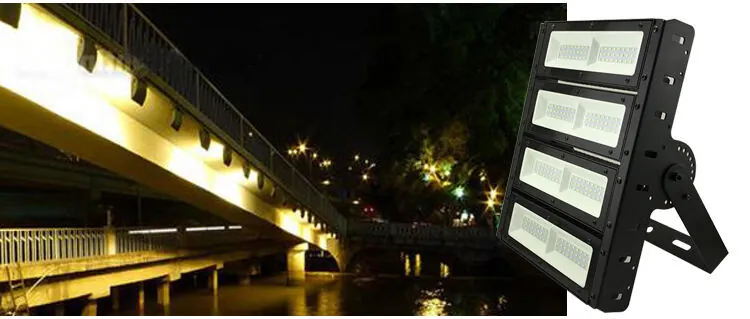

Common applications: sports stadiums, port terminals, airport aprons, construction sites, industrial yards, mining sites, large parking lots, and security perimeters. CE, RoHS, ISO 9001 certified. 5-year warranty on the fixture.

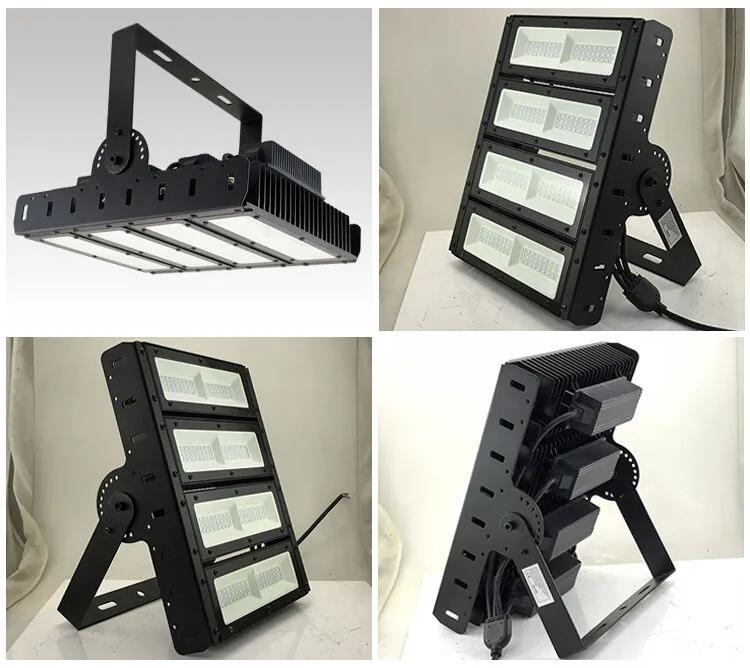

Product details
Closer look.
Dimensions, structure, application scenes, and certification documents. Click any tile to view at full size.
11 details
Available variants
10 configurations.

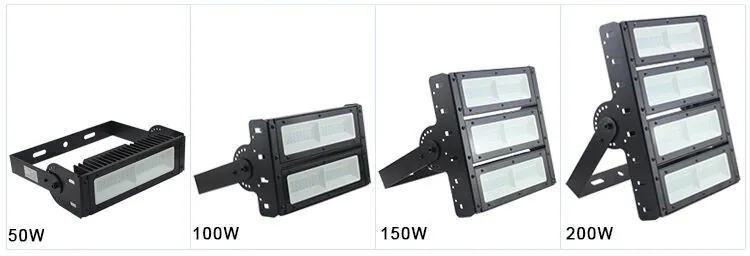

One product family, multiple wattage and size configurations. Pick the right SKU for your project's pole height and lighting requirement.
| SKU | Wattage | LED Qty | Size |
|---|---|---|---|
| M23-50W | 50W | 60 | 85*300*130 |
| M23-100W | 100W | 120 | 180*300*130 |
| M23-150W | 150W | 180 | 270*300*130 |
| M23-200W | 200W | 240 | 370*300*130 |
| M23-250W | 250W | 300 | 455*300*130 |
| M23-300W | 300W | 360 | 270*570*130 |
| M23-400W | 400W | 480 | 370*570*130 |
| M23-500W | 500W | 600 | 570*570*130 |
| M23-800W | 800W | 960 | 740*570*130 |
| M23-1000W | 1000W | 1200 | 1140*570*130 |
Common questions
Asked & answered.
The things buyers ask us most. Don't see yours? Send a question — we reply within 24 hours.
Generic for category
What is the warranty?
3 years on the full fixture, 5 years on the LED module, 10 years on the solar panel. We replace any defective unit at our cost.
What is the MOQ?
10 pieces for standard models. 50 pieces for fully custom builds. Sample orders of 1-3 pieces ship from stock at a small premium.
What is the lead time?
7-15 days for samples. 15-25 days for bulk orders under 500 pieces. 25-35 days for 500-2000 pieces. We confirm exact lead time with every quote.
How do I install it?
Every shipment includes a printed installation guide. Most fixtures mount to a standard 60mm pole tenon with 4 M8 bolts. No special tools needed.
