all in one

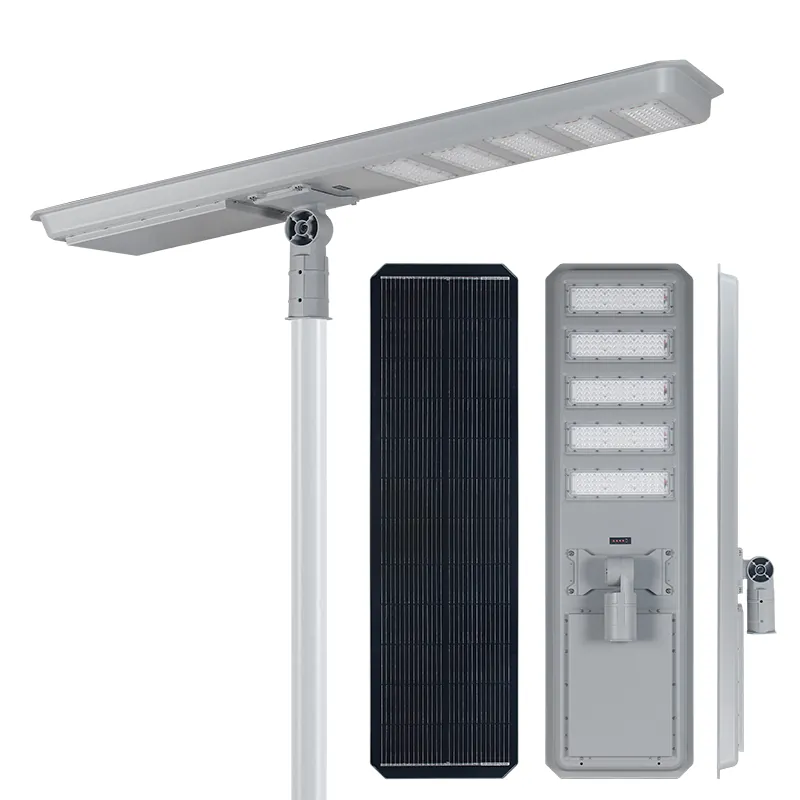

TL41145 All-in-One Solar Street Light

Model: TL41145

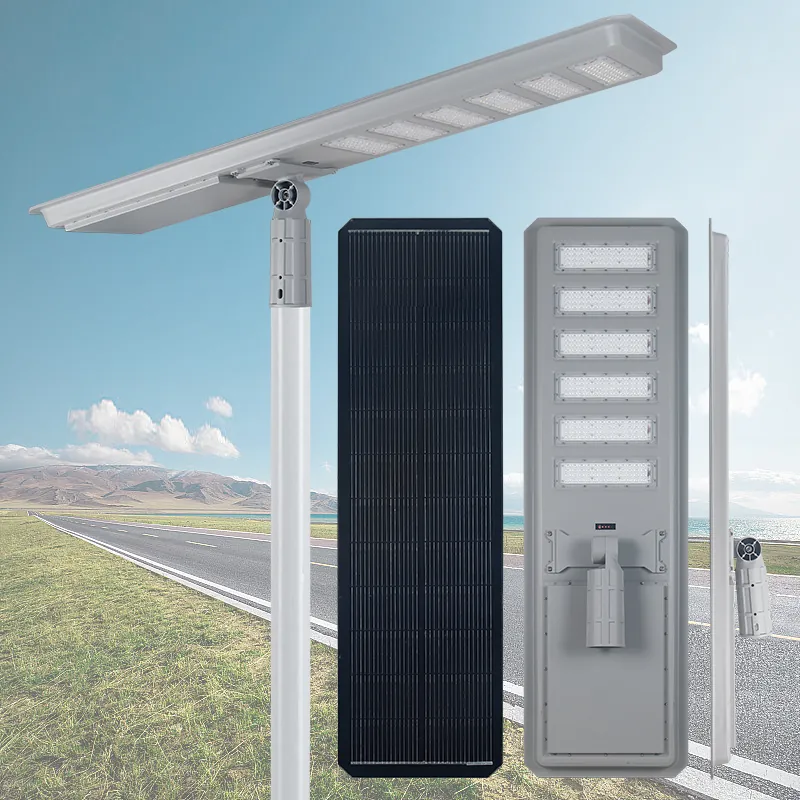

The TL all-in-one solar street light integrates a high-efficiency solar panel, LiFePO4 battery, MPPT controller, and high-brightness LED into a single IP66 housing. Pole-mount, no trenching, no grid power.

Warranty
3-5 yr
MOQ
10 pcs
Lead time
15-25d
Request a quoteWhatsApp · 24h reply
CE
Certified
RoHS
Certified
ISO 9001
Certified
Technical data

Specs, plain.

Every value verified on the production line. Need a parameter not listed? Ask us.

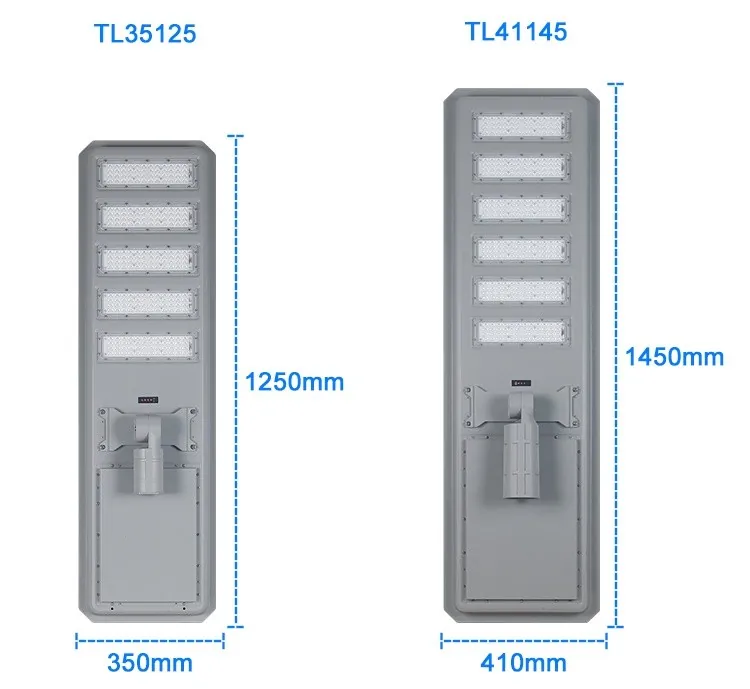

SizeL1450*W410*H170MM
LEDSMD 3030 288pcs
Battery3.2V/120AH (12.8V/45AH)
Solar Panel6V/110W (15V/110W)
Install Height10-12m
MaterialAluminum + PC
Warranty3 years
About this product

What it does.

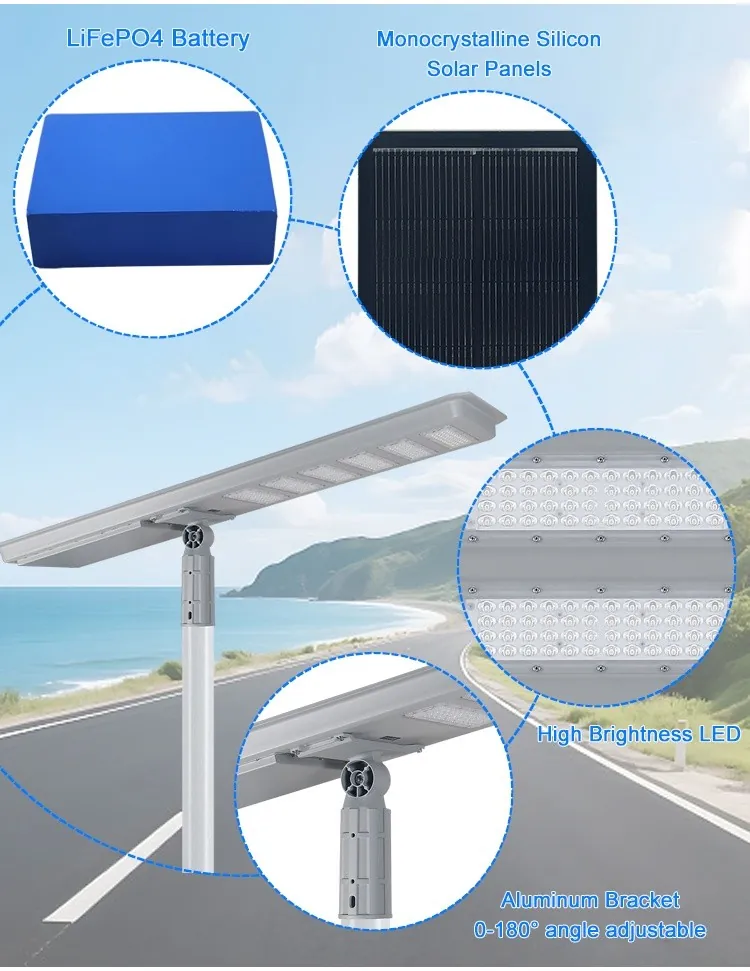

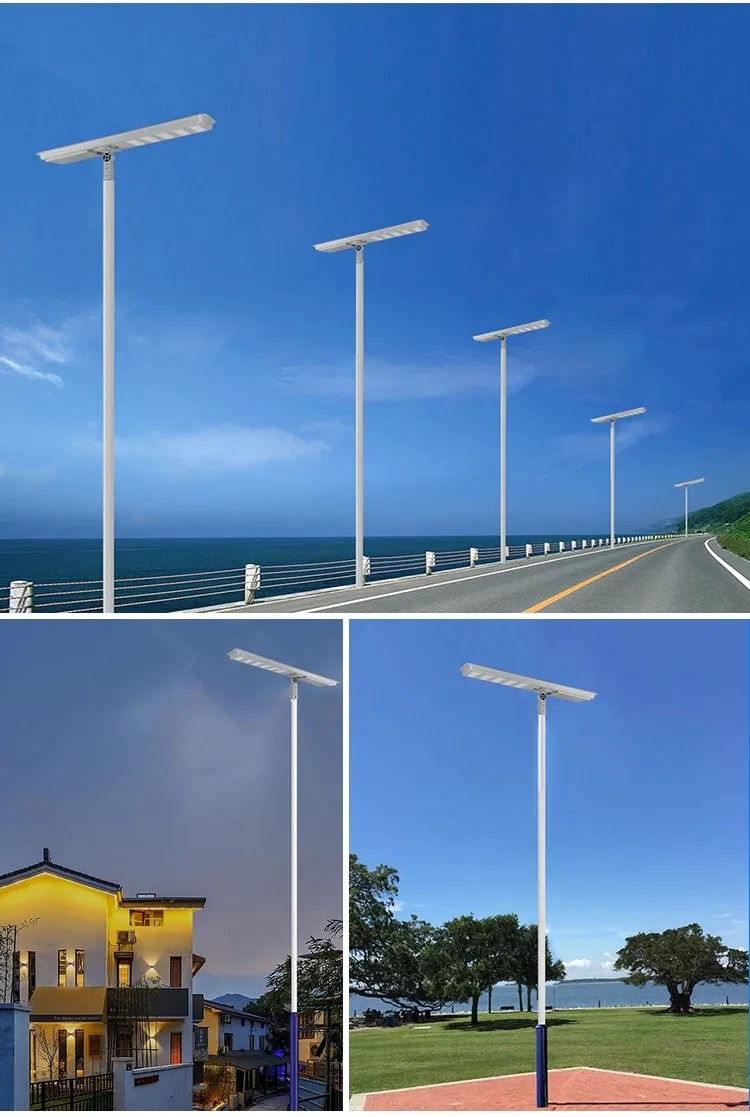

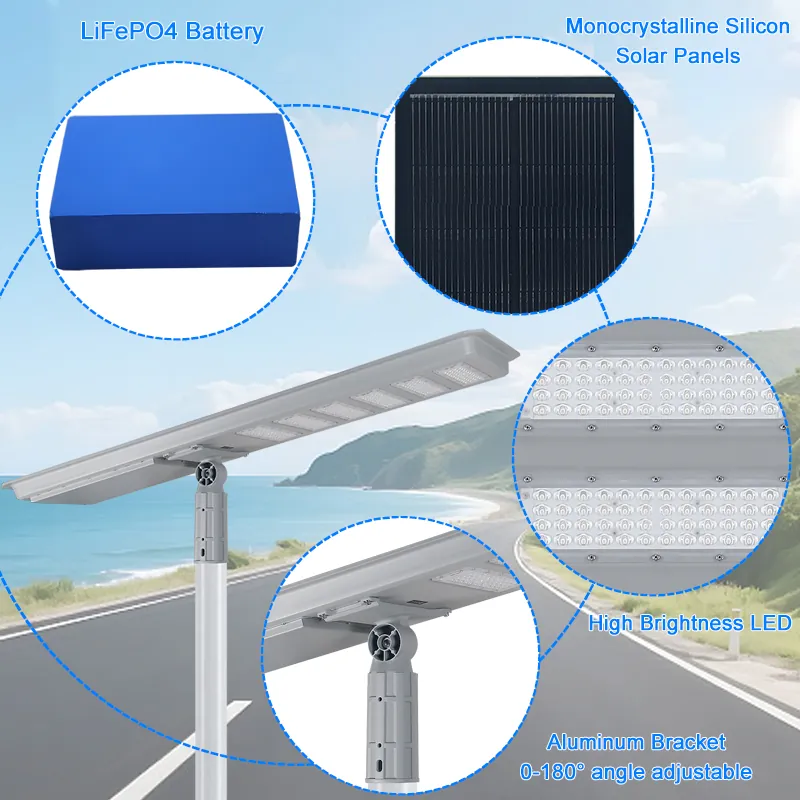

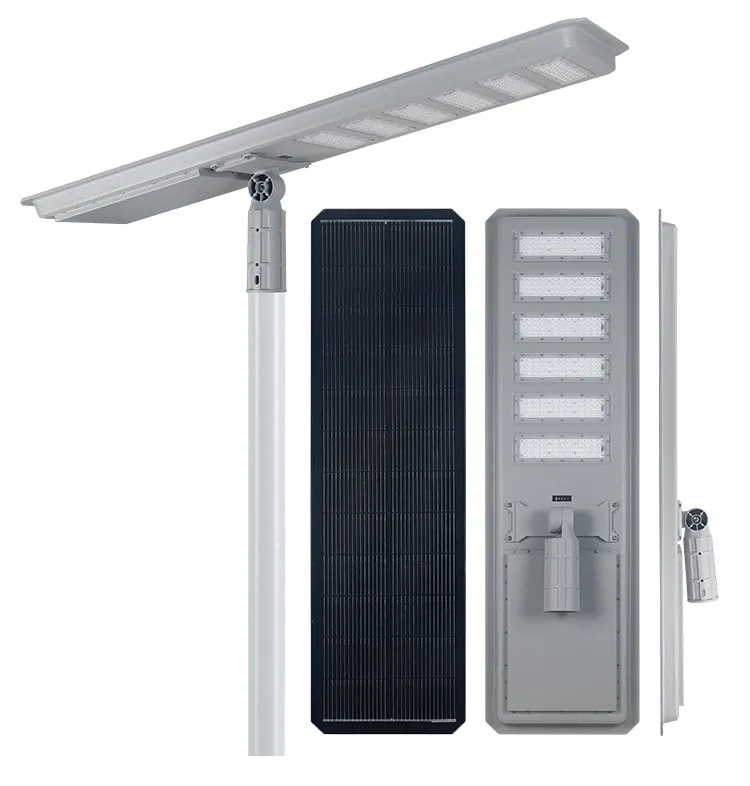

TL series all-in-one solar street light is built for 10-12m pole-mount installation. The fixture integrates a high-efficiency monocrystalline solar panel, long-life LiFePO4 battery pack, intelligent MPPT charge controller, and high-brightness LED module into a single die-cast aluminum housing rated IP66. The SMD 3030 288pcs configuration delivers 150-180 lm/W typical output with a 70×140° optical lens for even road coverage. The 3.2V/120AH (12.8V/45AH) battery and 6V/110W (15V/110W) combination provides 10-12 hours of full-brightness illumination per night with 2-3 days of backup autonomy in overcast conditions. Typical applications include main roads, community streets, parking lots, industrial parks, rural roadways, and commercial perimeter lighting. The integrated form factor means no external battery box, no trenching, and no electrician on site — install on a standard 60mm pole tenon with 4 M8 bolts, switch on, and walk away. OEM/ODM available: custom wattage, custom panel size, custom battery capacity, custom logo, custom packaging.
Product details

Closer look.

Dimensions, structure, application scenes, and certification documents. Click any tile to view at full size.

7 details
Common questions

Asked & answered.

The things buyers ask us most. Don't see yours? Send a question — we reply within 24 hours.

Generic for category
What does "all-in-one" mean?
An all-in-one solar street light integrates the solar panel, lithium battery, LED module, and MPPT controller into a single fixture. No external wiring or battery box — install it on a pole and turn it on.
How many rainy days can it last?
Standard configuration runs 2-3 backup days (autonomy). Upgrade to 4-5 days by adding a larger battery pack. We size every quote to your local climate.
What pole height and spacing should I use?
For a 6m road: 60W-80W with 18-22m spacing. For an 8m road: 100W-150W with 25-30m spacing. We provide Dialux simulations on request.
What is the warranty?
3 years on the full fixture, 5 years on the LED module, 10 years on the solar panel. We replace any defective unit at our cost.
What is the MOQ?
10 pieces for standard models. 50 pieces for fully custom builds. Sample orders of 1-3 pieces ship from stock at a small premium.
