High-output solar flood light for off-grid area lighting. SMD3030 96pcs LED, 3.2V/45AH battery, IP65, 120° beam.
Every value verified on the production line. Need a parameter not listed? Ask us.
| Size | L295*W210*H70MM |
|---|---|
| LED | SMD3030 96pcs |
| Battery | 3.2V/45AH |
| Solar Panel | 5V/45W |
| IP Rating | IP65 |
| Color Temperature | 3000K/4000K/6000K |
| Material | Aluminum + PC |
| Warranty | 3 years |
Four angles on this fixture: what it measures, what's inside it, where it's been installed, and the certifications it ships with.4 detail images across 4 groups.
BW-A Solar Flood Light ships as a compact die-cast aluminum housing, L295*W210*H70MM, with a U-shape bracket that adjusts ±90° vertically. Tolerances on every dimension are held to ±2 mm on the production line.
Cutaway view of the four modules that drive every BW-A Solar Flood Light: mono-crystalline solar panel, LiFePO4 battery pack, MPPT charge controller, and the SMD3030 LED array with its optic. Each module is sourced from audited suppliers and individually burn-in tested.
The BW-A Solar Flood Light is designed for open-area flood lighting without grid power. Three of the most common sites — billboards, parking lots, and building facades — are shown above. Each installation uses the same fixture with a different aiming angle on the U-bracket.
With the optional PIR / microwave motion sensor, brightness goes to 100% on detection and drops to 30% in standby — cutting average power draw by up to 70%.
Every shipment leaves the factory with CE, RoHS, and ISO 9001 documentation. For US-bound orders we add FCC Part 15B Class B; for Australia / NZ we add RCM; for Saudi Arabia we add SASO. Test reports are dated within the last 90 days.
Standard packing is 1 piece per 5-ply corrugated export carton with EPE foam inserts. A 20GP container fits approximately 3,200 cartons; 40HQ fits 7,800. Lead time 15–25 days for bulk.
Request certificates & HS-coded invoiceThe things buyers ask us most. Don't see yours? Send a question — we reply within 24 hours.
From the same solar accessory family.See all solar accessory →
High-output solar flood light for off-grid area lighting. SMD3030 144pcs LED, 3.2V/60AH battery, IP65, 120° beam.
High-output solar flood light for off-grid area lighting. SMD3030 192pcs LED, 3.2V/75AH battery, IP65, 120° beam.

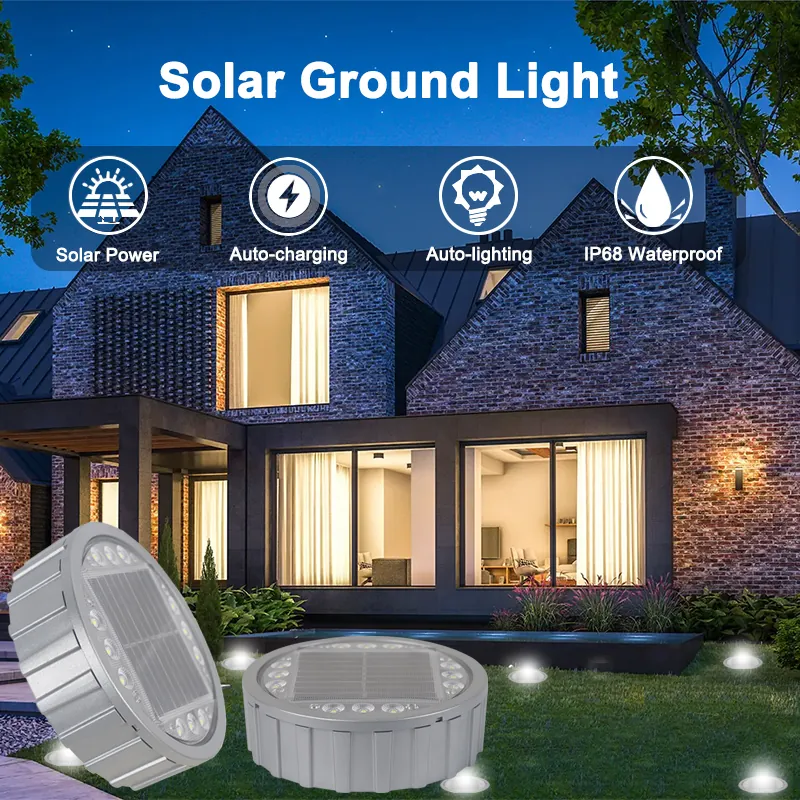

IP68 in-ground solar stud light for pathways, driveways, and landscape accents. 3.7V/2.2AH battery, walk-over rated.

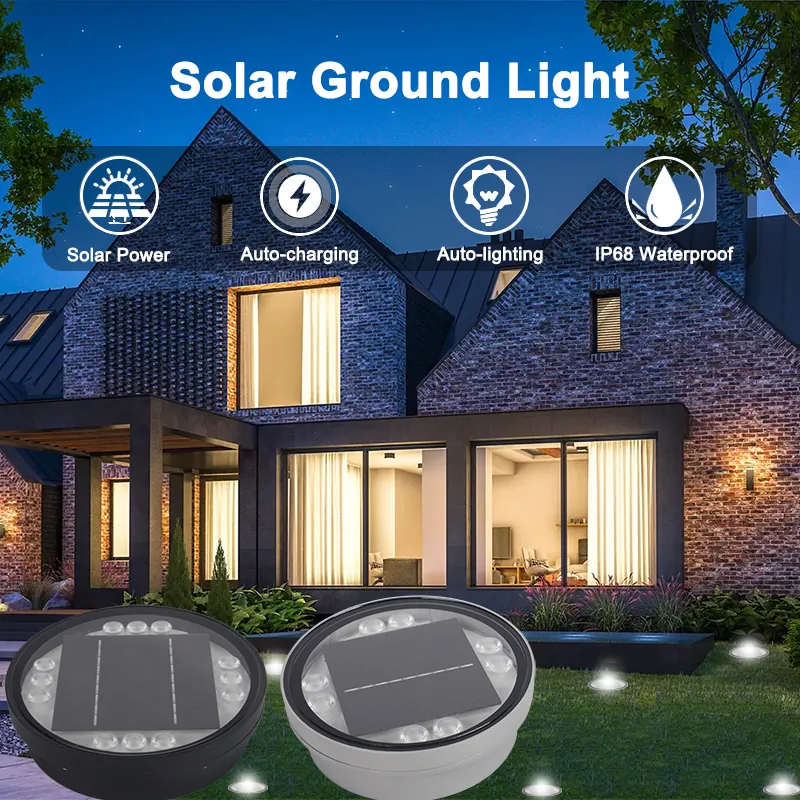

IP68 in-ground solar stud light for pathways, driveways, and landscape accents. 3.7V/4.4AH battery, walk-over rated.

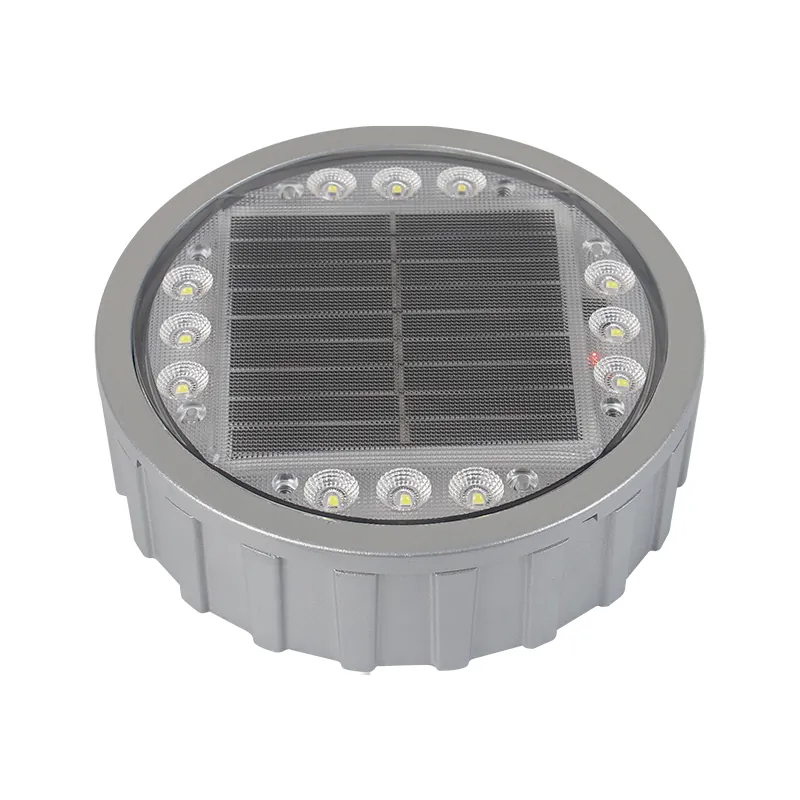

IP68 in-ground solar stud light for pathways, driveways, and landscape accents. 3.7V/4.4AH battery, walk-over rated.
